Honda Universal Combo Bar End Kit

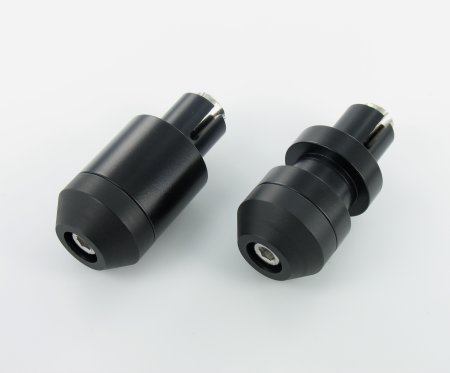

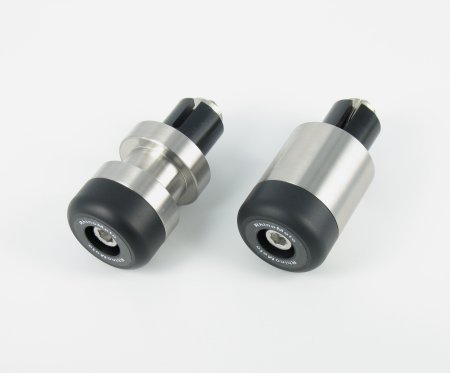

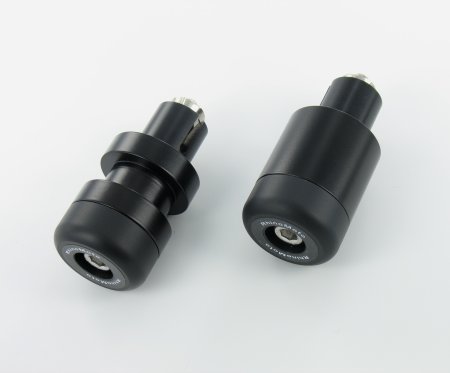

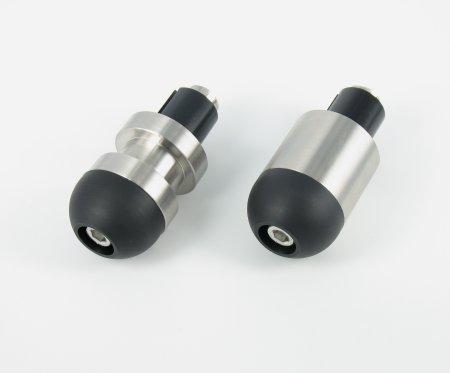

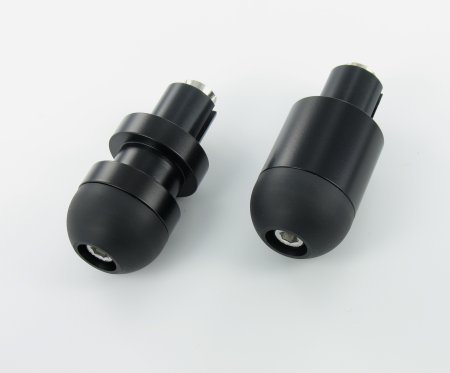

This combo bar end kit includes one bar end and one mirror mount, both with adapters to fit bars with inner diameters from .680" to .750" (17.2mm to 19.0mm). The mirror mount has a feature that accepts open bracket bar end mirrors. Both are constructed of a steel body CNC-machined from billet steel and a replaceable polymer button. The buttons can be ordered separately as spares should they become damaged in a tipover. The bodies are available as powder coated black or stainless steel. The buttons are available in flat, tapered, or round profiles. Please select finish and button style when ordering.

Weight (per side, including hardware): Bar end - 165 gm, mirror mount - 131 gm

Kit includes one barend body, one mirror mount body, 2 barend buttons, stainless steel fasteners, and 2 RhinoMoto logo stickers.

Installation of this kit requires removal of the stock weights from inside the bars. Reference items 9, 11,12 and 13 in the diagram below. This is easily accomplished by releasing clip 12 from the holes in the clipon tubes and pulling the internal parts 9, 11 and 13 out as one assembly.
